Introduction

Welcome to Centrapay! We enable you to transact Digital Assets or Vouchers via your point of sale, payment terminal, shopping cart or unattended device. We accomplish this via our Payments API which allows merchants, customers, terminals, and smart wallets to interact with each other.

Experimental Features

Some API features may be flagged as EXPERIMENTAL. These API features may be removed or changed without warning and should not be relied on in a production setting.

Contents

Example Payment Flows

Voucher Redemption

  1. Merchant creates a payment request via our API
  2. Consumer is prompted to enter a voucher code on terminal
  3. Consumer enters voucher Code into terminal
  4. The terminal calls our API with the details of the transaction
  5. We redeem the voucher if it is valid or reject it if it isn’t
  6. terminal displays result.

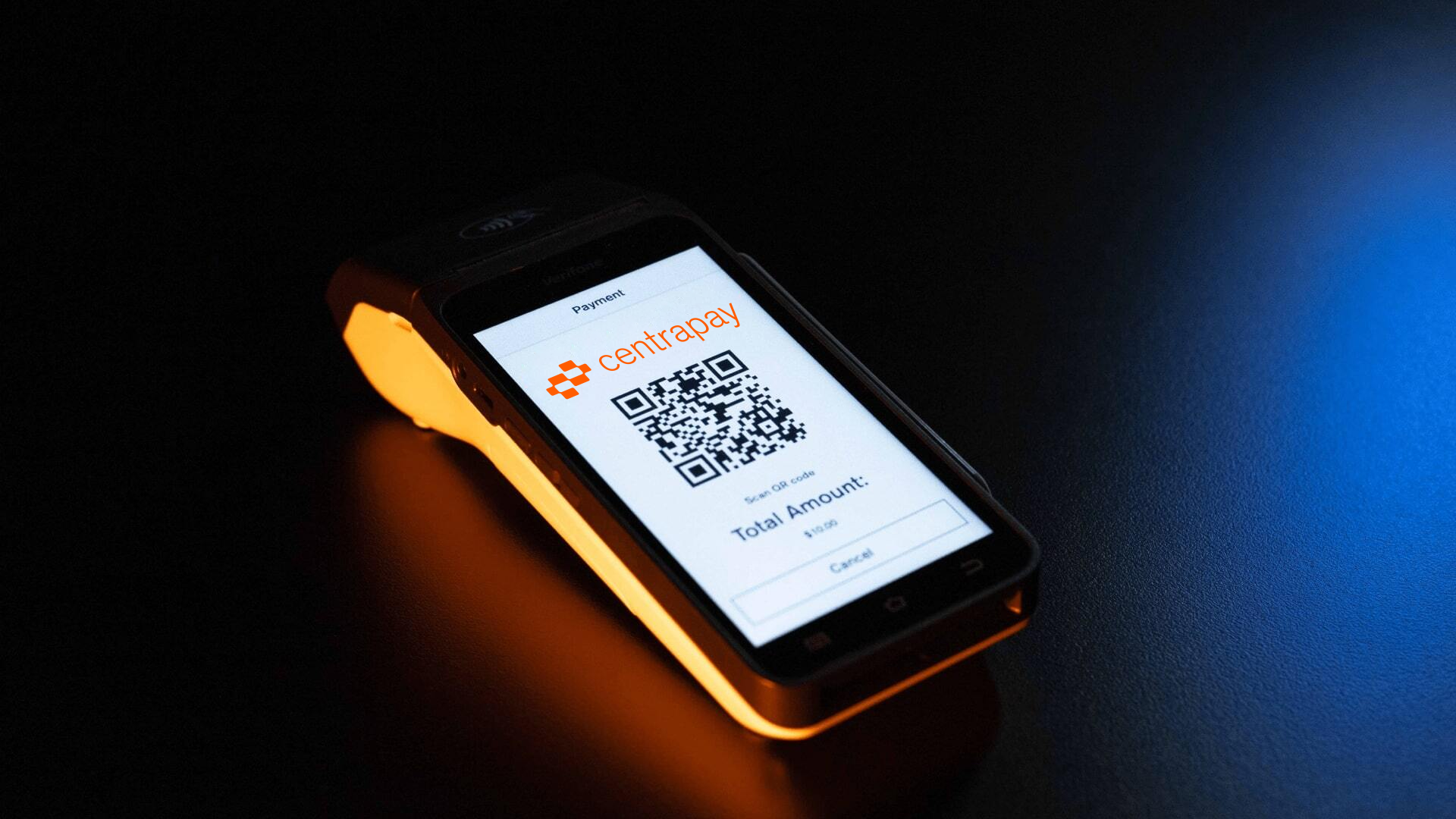

Dynamic QR Code

  1. Merchant creates a payment request via our API
  2. We respond with the payment request and a generated QR code
  3. The QR code is displayed by the terminal
  4. Consumer scans the QR code displayed
  5. Consumer selects payment type from a list of payment options a merchant supports via a Centrapay connected app
  6. We prompt their smart wallet to pay the request
  7. Smart wallet pays the request
  8. We verify payment and notify the terminal
  9. Terminal displays result

Static QR Code at a vending machine

  1. Consumer scans QR code and calls the merchants backend
  2. Merchant creates a payment request via our API
  3. Smart wallet displays information to the customer
  4. Customer selects payment options supported by the given merchant
  5. Smart wallet transfers funds to merchant
  6. We verify they have the required credit and notify merchant
  7. Customer picks an item from the machine > Product is vended > Merchant refunds the customer via our API

Barcode

  1. Customer generates a one time barcode via our connected app inside of their smart wallet
  2. Merchant scans the barcode and creates a payment request via our API which includes the customers barcode as a parameter
  3. We respond with the payment request and a generated QR code
  4. The QR code is displayed by the terminal
  5. Consumer scans the QR code displayed
  6. Consumer selects payment type from a list of payment options a merchant supports via a Centrapay connected app
  7. We prompt their smart wallet to pay the request
  8. Smart wallet pays the request
  9. We verify payment and notify the terminal
  10. Terminal displays result

API keys and access

We handle authorization via api keys, which are sent in the header when making a request to any of our endpoints. To get set up with an api key so you can start using the payments API contact us via email at devsupport@centrapay.com.

Payment Requests and Transactions

Throughout our documentation we will talk about payment requests and transactions in several places, and it is important to know the difference. A payment request is generated when the /requests.create endpoint has been called. Payment Requests are then used to configure the different payment types a merchant accepts, set the amount of the transaction as well as the fiat currency e.g. NZD, and to set up any webhooks. Transactions are created when a payment request has been paid successfully via the requests.pay endpoint, or when a completed transaction has been refunded via the requests.void or transactions.refund endpoint.

Endpoints

Our payments endpoints have interactive Swagger documentation at https://service.centrapay.com/payments/api/documentation.

Base Url: service.centrapay.com/payments/api


Requests /requests.cancel
/requests.create
/requests.info
/requests.pay
/requests.void
Service /service.info
Transaction /transactions.refund

Creating a payment request

Swagger Docs

POST https://service.centrapay.com/payments/api/requests.create

curl -X POST "https://service.centrapay.com/payments/api/requests.create" \
    -H 'x-api-key:f32c5497297084e5354b47c40d5ccacb109ce483' \
    -d merchantId="1399b053-b3dd-4c5b-9859-b5bf5c2ac477" \
    -d amount=300 \
    -d asset='NZD'

Required Parameters

Parameter Description
amount The payment amount in cents
asset The currency - NZD or AUD
merchantId The ID of the merchant creating the request

OptionalParameters

Parameter Description
clientId The ID of the merchant specific client configuration
description Description of the payment
externalReference Unique merchant reference for the payment request
notifyUrl The URL that will receive POST requests from the webhook
paymentExpirySeconds The amount of seconds until a request expires, must be an integer greater than 0

Getting the information about a payment request

Swagger Docs

GET https://service.centrapay.com/payments/api/requests.info

curl -G "https://service.centrapay.com/payments/api/requests.info" \
    -H 'x-api-key:f32c5497297084e5354b47c40d5ccacb109ce483' \
    -d requestId="a95b3b0d-1278-4613-8772-20d146065a2e"

Required Parameters

Parameter Description
requestId The payment requestId that is generated when /requests.create is called

Paying a payment request

Swagger Docs

POST https://service.centrapay.com/payments/api/requests.pay

curl -X POST "https://service.centrapay.com/payments/api/requests.pay" \
    -H 'x-api-key:f32c5497297084e5354b47c40d5ccacb109ce483' \
    -d authorization="12345678" \
    -d ledger="g.pocketvouchers.pv" \
    -d requestId="7d2b1d52-b609-4ccd-b4cc-c4a9af881bd9"

Required Parameters

Parameter Description
authorization An identifier that can be used to pay or verify payment on the ledger. See below for expected values.
ledger The ledger to use for payment. See payments[].ledger in the requests.info response for valid values.
requestId The payment requestId that is generated when /requests.create is called.

Expected Authorization Values

Ledger Type Authorization Param Value
Centrapay Wallet Centrapay wallet id
Pocket Vouchers Pocket Vouchers voucher code
Bitcoin Bitcoin transaction id

Centrapay Wallet Permissions

To pay with a Centrapay Wallet ledger the user (identified by the API Key or identity token) must have permission to transfer funds from the specified wallet.

Testing Pocket Vouchers

To test Pocket Vouchers, generate a test value voucher by texting “CENTRALBONUS” to 393. You will then receive a response text containing an 8 digit voucher code that has $20 of loaded credit. The received code is only valid for two weeks from the issue date. You might get charged your standard text rates from your provider.

Cancelling a payment request

Swagger Docs

POST https://service.centrapay.com/payments/api/requests.cancel

curl -X POST "https://service.centrapay.com/payments/api/requests.cancel" \
    -H 'x-api-key:f32c5497297084e5354b47c40d5ccacb109ce483' \
    -d requestId="a95b3b0d-1278-4613-8772-20d146065a2e"

Required Parameters

Parameter Description
requestId The payment requestId that is generated when /requests.create is called

Voiding a payment request

Swagger Docs

POST https://service.centrapay.com/payments/api/requests.void

curl -X POST "https://service.centrapay.com/payments/api/requests.void" \
    -H 'x-api-key:f32c5497297084e5354b47c40d5ccacb109ce483' \
    -d requestId="a95b3b0d-1278-4613-8772-20d146065a2e"

Required Parameters

Parameter Description
requestId The payment requestId that is generated when /requests.create is called.

Refunding a transaction

Swagger Docs

POST https://service.centrapay.com/payments/api/transactions.refund

curl -X POST "https://service.centrapay.com/payments/api/transactions.refund" \
    -H 'x-api-key:f32c5497297084e5354b47c40d5ccacb109ce483' \
    -d transactionId="7d2b1d52-b609-4ccd-b4cc-c4a9af881bd9" \
    -d amount=100

Refunding a transaction can be done two ways:

  1. Refund the full or partial amount once

    • If you refund a transaction without providing an external reference, you will get a successful response for the first request and then an ALREADY_REFUNDED message for any refund requests that follow for the same transaction, unless an external reference is provided.
  2. Refund a partial amount multiple times up to the transaction amount

    • If you provide an external reference then a transaction can be refunded multiple times provided that the external reference is unique for each refund request. When a duplicate external reference is provided when attempting to refund the same transaction we return a successful response if the amount of the request is the same both times but do not process another refund, this is because we assume it to be a repeat request. If the amount is different you will get a REPEAT_REFERENCE error message.

Required Parameters for one time refund

Parameter Description
transactionId The transaction to refund you can either get this by setting notifyUrl when the request is created and receiving a webhook notification with the transaction details, or call /requests.info and grab the transactionId from there.
amount The amount to refund in cents

Additional required Parameter for multiple refunds

Parameter Description
externalReference A reference supplied by the merchant that must be unique for each refund of that transaction, can be anything you want but it must be unique.

Errors

Error codes

Error code Http code Message Description
1 401 KEY_NOT_AUTHORIZED The Api Key was not found in the headers or is invalid
2 404 REQUEST_NOT_FOUND The provided request doesn’t exist
3 404 TRANSACTION_NOT_FOUND The provided transaction doesn’t exist
4 404 MERCHANT_NOT_FOUND The provided Merchant doesn’t exist
5 400 INVALID_REQUEST_ID RequestId must be a valid UUID
6 400 INVALID_AMOUNT Amount must be a positive integer greater than zero
7 400 INVALID_ASSET Asset was not a supported currency type
8 400 INVALID_AUTHORIZATION Authorization must be a non empty string
9 400 INVALID_LEDGER Ledger must be a non empty string
10 400 INVALID_MERCHANT_ID MerchantId must be a non empty string
11 400 INVALID_CLIENT_ID ClientId must be a valid UUID
12 400 INVALID_PATRON_CODE PatronCode must be a non empty string
13 400 INVALID_DESCRIPTION Description must be a non empty string
14 400 INVALID_REFERENCE ExternalReference must be a non empty string
15 400 INVALID_NOTIFY_URL NotifyUrl must be a non empty string
16 400 INVALID_TRANSACTION_ID TransactionId must be a non empty string
17 400 REQUEST_CANCELLED Action cannot be completed because the request has already been cancelled
18 400 REQUEST_EXPIRED Action cannot be completed because the request has expired
19 400 REQUEST_PAID Action cannot be completed because the request has been paid
20 400 INVALID_PAYMENT_EXPIRY_SECONDS PaymentExpirySeconds is either empty, or is not an integer greater than 0
21 403 FORBIDDEN The Api Key provided doesn’t have the required permissions or the resource is not found
51 500 INTERNAL_ERROR Something went wrong while trying to cancel the request, we have received an error message and will figure out what went wrong.
76 503 EXTERNAL_SERVICE Failed to get a quote for the exchange rate for one or more of the payment types needed to create the payment request.
77 500 INTERNAL_ERROR Something went wrong while trying to create the request, we have received an error message and will figure out what went wrong.
126 403 IN_USE A webSocket channel for this request already exists
151 403 IN_USE An active WS connection already exists for that patronCode
176 400 LEDGER_NOT_ENABLED Merchant is not configured with the provided ledger
177 400 INVALID_LEDGER The ledger provided doesn’t exist
178 500 INTERNAL_SERVER_ERROR Something went wrong while trying to pay a request, we have received an error message and will figure out what went wrong.
179 404 BITCOIN_TRANSACTION_NOT_FOUND A transaction for the provided authorization could not be found on the bitcoin block chain
180 400 OLD_TRANSACTION The provided authorization is for a transaction that was confirmed before the payment request was created
181 400 INSUFFICIENT_PAYMENT The transaction was found on the bitcoin blockchain but the amount received by Centrapay is less than the total of the payment
182 403 MERCHANT_TRANSACTION_LIMIT_EXCEEDED The merchant that the voucher is associated with has reached the limit that they are configured to transact, e.g. If merchant has $500 worth of vouchers to give out, this error comes when $500 has been redeemed and someone tries to redeem a voucher.
183 403 INVALID_TRANSACTION_AMOUNT The transaction amount provided was less than the redemption amount or larger than the amount on a value voucher
184 403 INVALID_VOUCHER_AMOUNT The transaction amount provided was less than the redemption amount or larger than the amount on a value voucher
185 403 VOUCHER_EXPIRED The voucher has expired
186 403 INSUFFICIENT_VOUCHER_BALANCE The voucher balance is less than the required amount
187 404 VOUCHER_UNKNOWN The voucher code supplied does not correspond to any valid vouchers
189 403 INSUFFICIENT_WALLET_BALANCE The wallet balance is less than the required amount
190 200 TRANSACTION_ALREADY_EXISTS A successful payment transaction already exists for a payment request.
191 500 OPTIMISTIC_LOCK_ERROR A resource was updated concurrently. Request should be retried after refreshing latest state if applicable.
276 400 ALREADY_REFUNDED The transaction has already been refunded
277 400 INVALID_AMOUNT The refund requested is greater than the transaction amount

Webhooks

Webhook notifications are sent for significant Payment life-cycle events. The Webhook endpoint is notified by sending an HTTP POST request to the notifyUrl defined in the Payment Request.

Life-cycle Events That Trigger Webhooks

The supported event types that will be notified to the Payment Requests webhook and the associated “transactionType” value that will be sent in the payload are:

Event Type Value of “transactionType”
Payment Request Cancelled CANCELLED
Payment Request Expired EXPIRED
Transaction Completed PURCHASE
Transaction Refunded REFUND

Payment Request Cancelled

A payment request can be cancelled by either calling the /requests.cancel or /requests.void endpoint before a request has been paid successfully. When a request has been cancelled we send a JWT that when decoded matches the Payment Request Cancelled example in the Decoded Webhook JWT Examples section below.

Payment Request Expired

A payment request expires two minutes after being created if it hasn’t been cancelled, or paid. When a request has expired we send a JWT that when decoded matches the Payment Request Cancelled example in the Decoded Webhook JWT Examples section below with the transactionType set to EXPIRED.

Transaction Completed

A transaction is considered complete when requests.pay is called with parameters that satisfy a payment request and the request has been paid successfully. When a transaction has been completed we send a JWT that when decoded matches the Transaction Completed example in the Decoded Webhook JWT Examples section belolw.

Transaction Refunded

A transaction can be refunded one to many times and each time a transaction has been refunded successfully we notify the webhook associated with the original payment request. A transaction can be refunded when transactions.refund has been called for a partial or full refund, or when requests.void is called for a request that has been paid. When a transaction has been refunded we send a JWT that when decoded matches the Transaction Completed example in the Decoded Webhook JWT Examples section below but with transactionType set to REFUND.

Webhook Payload

The body of the webhook is a JSON document with the following format:

{
  "token": "${JWT}"
}

The decoded JWT will contain a “transaction” property with a “transactionType” that indicates the event type. Depending on the type of event, the payload will also contain additional details about the transaction and payment request. For example:

{
  "transaction": {
    "transactionType": "REFUND",
    "request": {
      "requestId": "bec358bf-edb5-4633-a785-a95cc281d3b7",
      "denomination": {
        "asset": "NZD",
        "amount": "100"
      }
    }
  }
}

Webhook Payload Fields

Property Description
transactionId Id of the transaction
transactionType Indicates which event triggered the notification message
state Current state of the transaction
ledger The ledger at which the authorization was processed
amount Transaction amount in the lowest denomination available
createdAt Timestamp at which the request was created
updatedAt Timestamp at which the request was updated
type The payment type used by the issuer to reconcile settlement
request Request object, see details at requests.info
authCode Authorization code used to settle this transaction

Webhook JWT Validation

A webhook JWT can be validated by checking the signature against the Centrapay Webhook public key:

-----BEGIN PUBLIC KEY-----
MFkwEwYHKoZIzj0CAQYIKoZIzj0DAQcDQgAEt+vW2fE0mLLmdzJtYrz7J9q/yEXl
gmIjCXdv3VNvYfTsaBO5PJNiaD3l9lD8PzEQu31ePsOG81mDVuo40+dgLg==
-----END PUBLIC KEY-----

Decoded Webhook JWT Examples

Transaction Completed Successfully

{
  "transaction": {
    "transactionId": "aba4b07d-fd12-43bc-bbb1-12fda46d9937",
    "transactionType": "PURCHASE",
    "ledger": "g.crypto.bitcoin.mainnet",
    "state": "completed",
    "amount": 2000,
    "request": {
      "requestId": "1b23d1f9-8a3e-414d-ac94-f4b331095197",
      "merchantId": "0b1100be-6a76-45b0-adb8-bfe7db5ae720",
      "externalReference": "12345sixseveneightnineten",
      "denomination": { "asset": "NZD", "amount": 2000 }
    },
    "createdAt": "2018-10-02T00:29:09.307Z",
    "updatedAt": "2018-10-02T00:29:11.383Z",
    "type": "BITCOIN",
    "authCode": "961241"
  }
}

Payment Request Cancelled

{
  "transaction": {
    "transactionType": "CANCELLED",
    "request": {
      "requestId": "bec358bf-edb5-4633-a785-a95cc281d3b7",
      "merchantId": "c614d516-7fbe-4acc-8a49-ed1ce8c54e77",
      "clientId": "ac1cf8f3-3bbb-4286-beb5-70e7efe562c8",
      "denomination": {
        "asset": "NZD",
        "amount": "1"
      }
    }
  }
}
